IPG20N06S4L11ATMA2

In Stock: 1,237

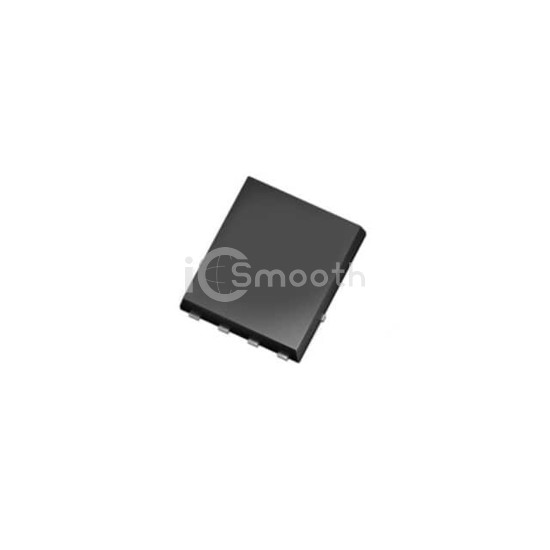

IPG20N06S4L11ATMA2 - Infineon Technologies - Transistors - FETs, MOSFETs - Arrays
REF: IPG20N06S4L11ATMA2 Infineon Technologies
IPG20N06S4L11ATMA2

Infineon Technologies

MOSFET_)40V 60V)

IPG20N06S4L11ATMA2 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET_)40V 60V). Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 65W (Tc).

Datasheet Request a Quote

In Stock: 1,237

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Rds On (Max) @ Id, Vgs11.2mOhm @ 17A, 10V
Vgs(th) (Max) @ Id2.2V @ 28µA
Gate Charge (Qg) (Max) @ Vgs53nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds4020pF @ 25V
Power - Max65W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Package / Case8-PowerVDFN
Supplier Device PackagePG-TDSON-8-10
