Name: IPG15N06S3L-45
Brand: Infineon Technologies
SKU: IPG15N06S3L-45
Availability: InStock

REF: IPG15N06S3L-45 Infineon Technologies

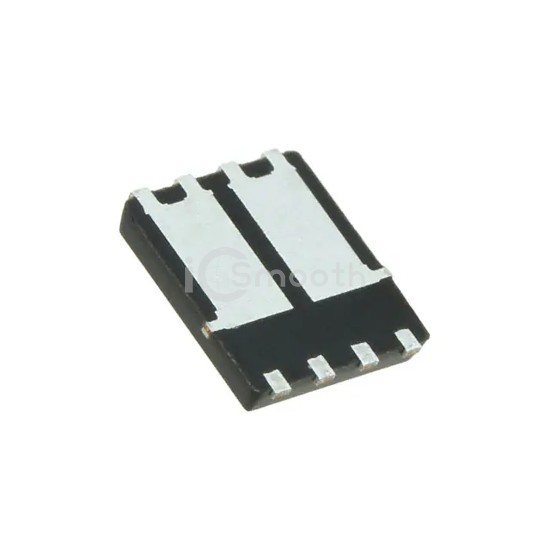

IPG15N06S3L-45

MOSFET 2N-CH 55V 15A TDSON-8

IPG15N06S3L-45 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 55V 15A TDSON-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 21W.

Datasheet Request a Quote

In Stock: 5,752

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25°C	15A
Rds On (Max) @ Id, Vgs	45mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.2V @ 10µA

Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1420pF @ 25V
Power - Max	21W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PG-TDSON-8-4
