IKZA75N65RH5XKSA1

In Stock: 84

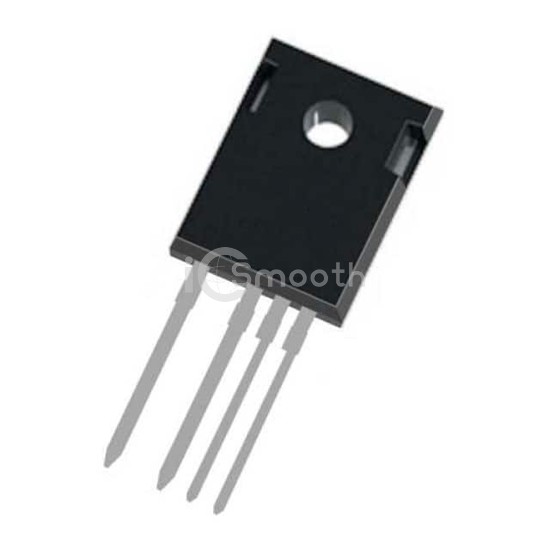

IKZA75N65RH5XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKZA75N65RH5XKSA1 Infineon Technologies
IKZA75N65RH5XKSA1

Infineon Technologies

INDUSTRY 14

IKZA75N65RH5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. INDUSTRY 14. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 84

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 75A
Power - Max395 W
Switching Energy310µJ (on), 300µJ (off)
Input TypeStandard
Gate Charge168 nC
Td (on/off) @ 25°C25ns/180ns
Test Condition400V, 37.5A, 9Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4-3
