IKZA50N65SS5XKSA1

In Stock: 460

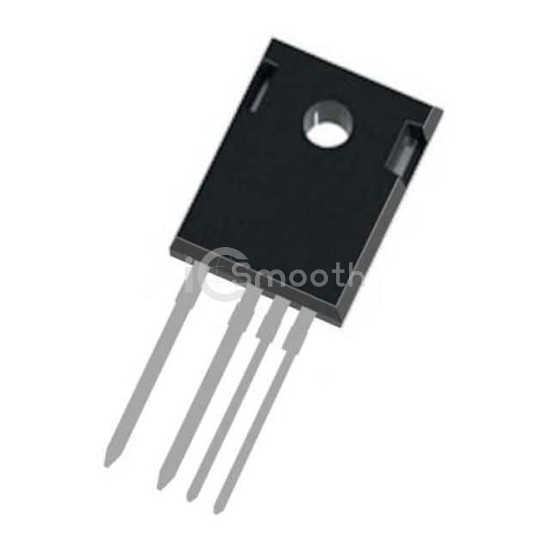

IKZA50N65SS5XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKZA50N65SS5XKSA1 Infineon Technologies
IKZA50N65SS5XKSA1

Infineon Technologies

INDUSTRY 14

IKZA50N65SS5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. INDUSTRY 14. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 460

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 50A
Power - Max274 W
Switching Energy230µJ (on), 520µJ (off)
Input TypeStandard
Gate Charge110 nC
Td (on/off) @ 25°C19ns/140ns
Test Condition400V, 50A, 9Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4-3
