Name: IKZ75N65NH5XKSA1
Brand: Infineon Technologies
SKU: IKZ75N65NH5XKSA1
Availability: InStock

REF: IKZ75N65NH5XKSA1 Infineon Technologies

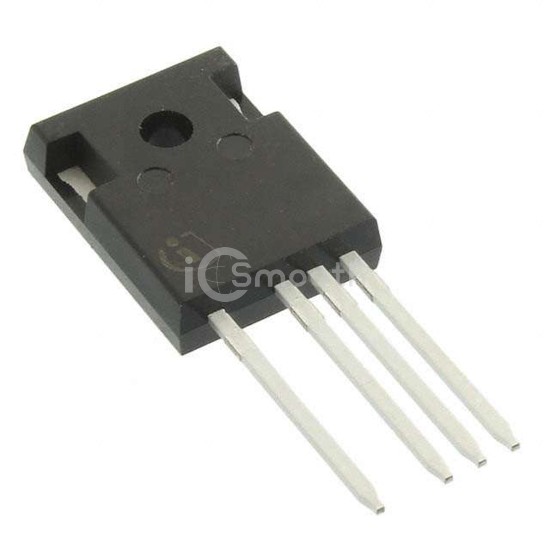

IKZ75N65NH5XKSA1

IGBT TRENCH 650V 90A TO247-4

IKZ75N65NH5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH 650V 90A TO247-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 90 A.

Datasheet Request a Quote

In Stock: 8,967

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	90 A
Current - Collector Pulsed (Icm)	300 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 75A
Power - Max	395 W
Switching Energy	880µJ (on), 520µJ (off)
Input Type	Standard

Gate Charge	166 nC
Td (on/off) @ 25°C	52ns/412ns
Test Condition	400V, 37.5A, 27Ohm, 15V
Reverse Recovery Time (trr)	59 ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-4
Supplier Device Package	PG-TO247-4
