IKZ75N65EL5XKSA1

In Stock: 5,459

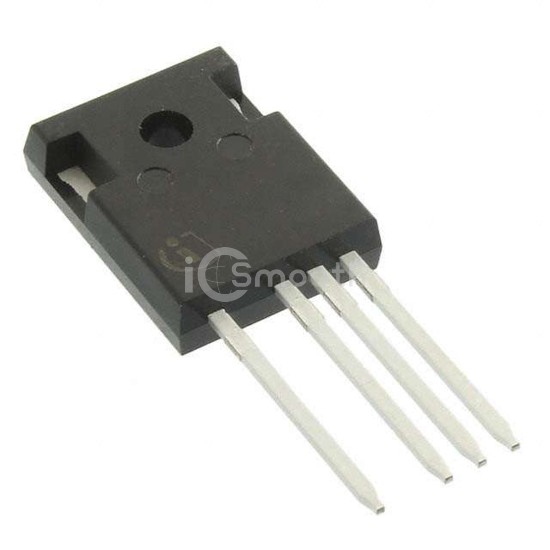

IKZ75N65EL5XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKZ75N65EL5XKSA1 Infineon Technologies
IKZ75N65EL5XKSA1

Infineon Technologies

IGBT 650V 100A TO247-4

IKZ75N65EL5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 650V 100A TO247-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 5,459

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)100 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic1.35V @ 15V, 75A
Power - Max536 W
Switching Energy1.57mJ (on), 3.2mJ (off)
Input TypeStandard
Gate Charge436 nC
Td (on/off) @ 25°C120ns/275ns
Test Condition400V, 75A, 23Ohm, 15V
Reverse Recovery Time (trr)59 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4
