IKY75N120CS6XKSA1

In Stock: 9,034

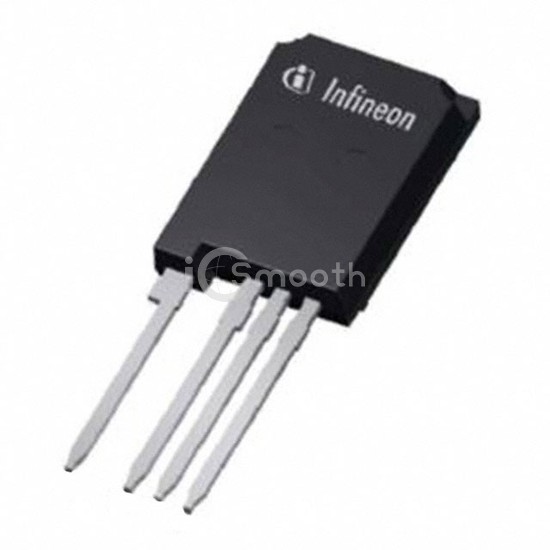

IKY75N120CS6XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKY75N120CS6XKSA1 Infineon Technologies
IKY75N120CS6XKSA1

Infineon Technologies

IGBT TRENCH 1200V 150A TO247-4

IKY75N120CS6XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH 1200V 150A TO247-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 150 A.

Datasheet Request a Quote

In Stock: 9,034

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)150 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 75A
Power - Max880 W
Switching Energy2.2mJ (on), 2.95mJ (off)
Input TypeStandard
Gate Charge530 nC
Td (on/off) @ 25°C32ns/300ns
Test Condition600V, 75A, 4Ohm, 15V
Reverse Recovery Time (trr)205 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4-2
