IKY50N120CH3XKSA1

In Stock: 8,964

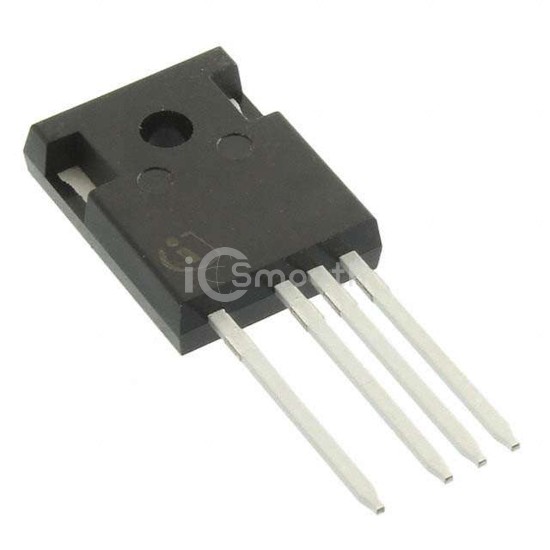

IKY50N120CH3XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKY50N120CH3XKSA1 Infineon Technologies
IKY50N120CH3XKSA1

Infineon Technologies

IGBT 1200V 100A TO247-4

IKY50N120CH3XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1200V 100A TO247-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 8,964

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)100 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic2.35V @ 15V, 50A
Power - Max652 W
Switching Energy2.3mJ (on), 1.9mJ (off)
Input TypeStandard
Gate Charge235 nC
Td (on/off) @ 25°C32ns/296ns
Test Condition600V, 50A, 10Ohm, 15V
Reverse Recovery Time (trr)255 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4
