IKW50N120CS7XKSA1

In Stock: 8,781

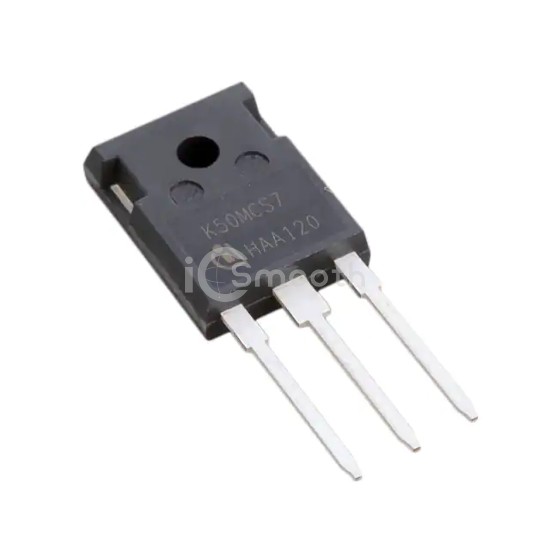

IKW50N120CS7XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKW50N120CS7XKSA1 Infineon Technologies
IKW50N120CS7XKSA1

Infineon Technologies

INDUSTRY 14 PG-TO247-3

IKW50N120CS7XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. INDUSTRY 14 PG-TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 82 A.

Datasheet Request a Quote

In Stock: 8,781

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)82 A
Current - Collector Pulsed (Icm)150 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 50A
Power - Max428 W
Switching Energy2.8mJ (on), 2.2mJ (off)
Input TypeStandard
Gate Charge290 nC
Td (on/off) @ 25°C29ns/170ns
Test Condition600V, 50A, 2.3Ohm, 15V
Reverse Recovery Time (trr)165 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3
