IKW40N65ET7XKSA1

In Stock: 5,996

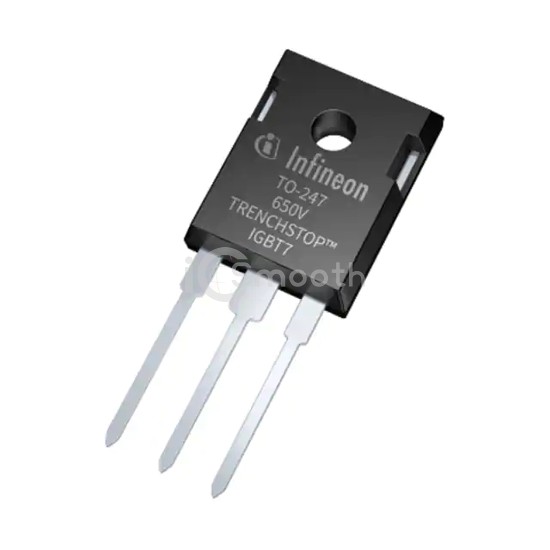

IKW40N65ET7XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKW40N65ET7XKSA1 Infineon Technologies
IKW40N65ET7XKSA1

Infineon Technologies

IKW40N65ET7XKSA1

IKW40N65ET7XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IKW40N65ET7XKSA1. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 76 A.

Datasheet Request a Quote

In Stock: 5,996

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)76 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic1.65V @ 15V, 40A
Power - Max230.8 W
Switching Energy1.05mJ (on), 590µJ (off)
Input TypeStandard
Gate Charge235 nC
Td (on/off) @ 25°C20ns/310ns
Test Condition400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)85 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3
