IKQ75N120CH3XKSA1

In Stock: 7,550

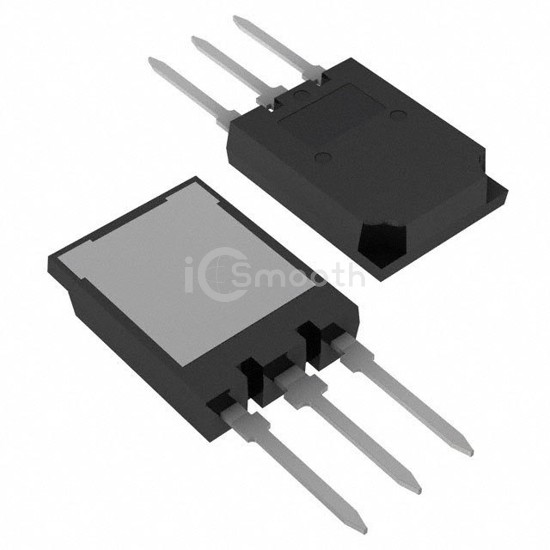

IKQ75N120CH3XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKQ75N120CH3XKSA1 Infineon Technologies
IKQ75N120CH3XKSA1

Infineon Technologies

IGBT 1200V 150A TO247-3-46

IKQ75N120CH3XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 1200V 150A TO247-3-46. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 150 A.

Datasheet Request a Quote

In Stock: 7,550

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)150 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic2.35V @ 15V, 75A
Power - Max938 W
Switching Energy6.4mJ (on), 2.8mJ (off)
Input TypeStandard
Gate Charge370 nC
Td (on/off) @ 25°C34ns/282ns
Test Condition600V, 75A, 6Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3-46
