IKFW60N65ES5XKSA1

In Stock: 168

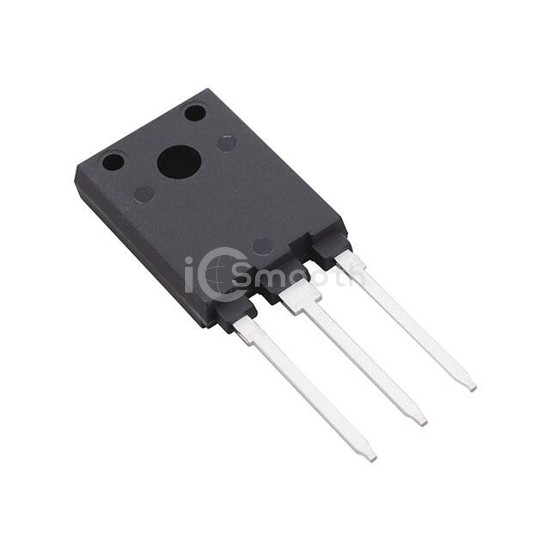

IKFW60N65ES5XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKFW60N65ES5XKSA1 Infineon Technologies
IKFW60N65ES5XKSA1

Infineon Technologies

IKFW60N65ES5XKSA1

IKFW60N65ES5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IKFW60N65ES5XKSA1. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 77 A.

Datasheet Request a Quote

In Stock: 168

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)77 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 50A
Power - Max138 W
Switching Energy1.23mJ (on), 550µJ (off)
Input TypeStandard
Gate Charge120 nC
Td (on/off) @ 25°C20ns/127ns
Test Condition400V, 50A, 8.2Ohm, 15V
Reverse Recovery Time (trr)77 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-HSIP247-3-2
