IKFW60N60DH3EXKSA1

In Stock: 200

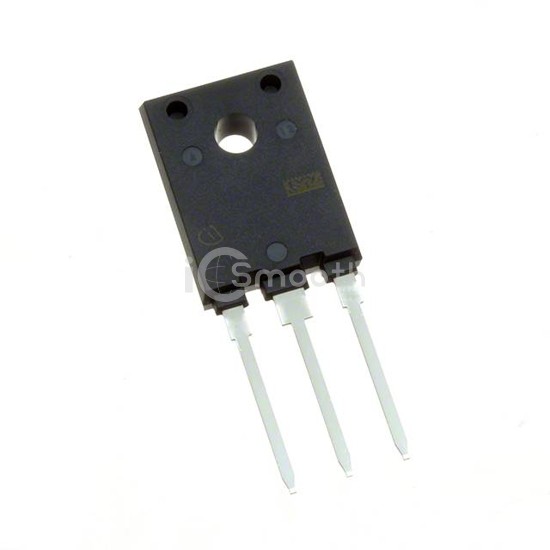

IKFW60N60DH3EXKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKFW60N60DH3EXKSA1 Infineon Technologies
IKFW60N60DH3EXKSA1

Infineon Technologies

IGBT 600V 50A TO247-3

IKFW60N60DH3EXKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT 600V 50A TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 53 A.

Datasheet Request a Quote

In Stock: 200

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)53 A
Current - Collector Pulsed (Icm)150 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 50A
Power - Max141 W
Switching Energy1.57mJ (on), 720µJ (off)
Input TypeStandard
Gate Charge210 nC
Td (on/off) @ 25°C23ns/170ns
Test Condition400V, 50A, 7Ohm, 15V
Reverse Recovery Time (trr)68 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3-AI
