IKFW50N60DH3EXKSA1

In Stock: 452

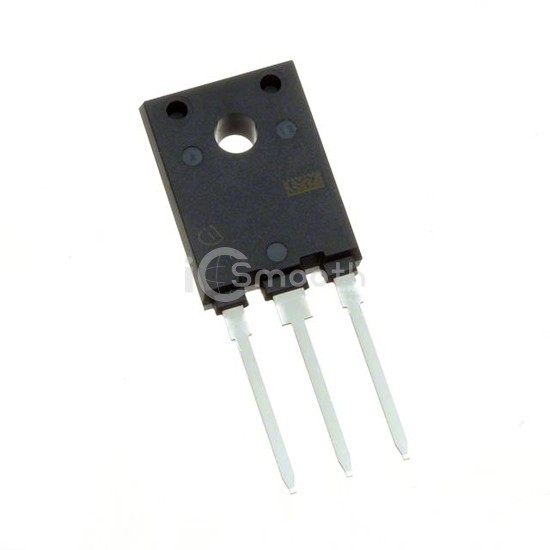

IKFW50N60DH3EXKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IKFW50N60DH3EXKSA1 Infineon Technologies
IKFW50N60DH3EXKSA1

Infineon Technologies

IGBT TRENCH/FS 600V 40A TO247-3

IKFW50N60DH3EXKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH/FS 600V 40A TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 452

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 40A
Power - Max130 W
Switching Energy1.28mJ (on), 560µJ (off)
Input TypeStandard
Gate Charge160 nC
Td (on/off) @ 25°C21ns/174ns
Test Condition400V, 40A, 8Ohm, 15V
Reverse Recovery Time (trr)64 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3-AI
