IGZ50N65H5XKSA1

In Stock: 1,046

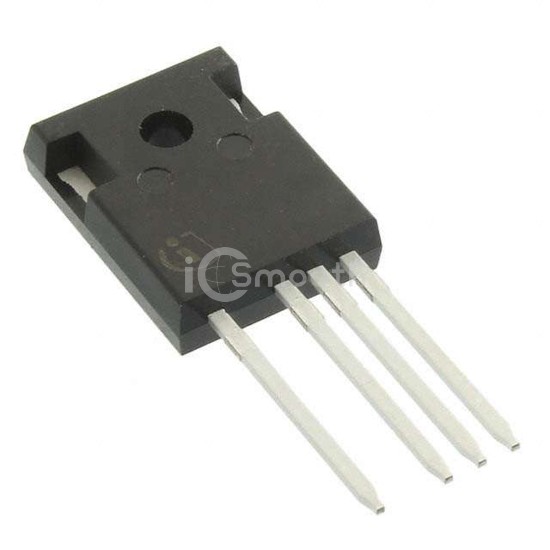

IGZ50N65H5XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IGZ50N65H5XKSA1 Infineon Technologies
IGZ50N65H5XKSA1

Infineon Technologies

IGBT TRENCH 650V 85A TO247-4

IGZ50N65H5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH 650V 85A TO247-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 85 A.

Datasheet Request a Quote

In Stock: 1,046

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)85 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 50A
Power - Max273 W
Switching Energy410µJ (on), 190µJ (off)
Input TypeStandard
Gate Charge109 nC
Td (on/off) @ 25°C20ns/250ns
Test Condition400V, 25A, 12Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4
