IGZ100N65H5XKSA1

In Stock: 4,710

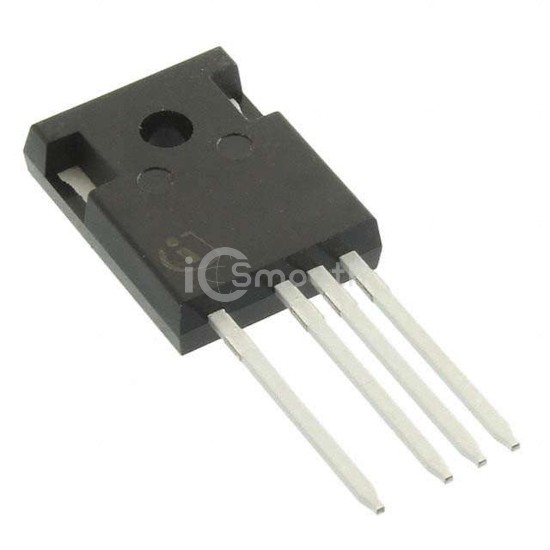

IGZ100N65H5XKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: IGZ100N65H5XKSA1 Infineon Technologies
IGZ100N65H5XKSA1

Infineon Technologies

IGBT TRENCH 650V 161A TO247-4

IGZ100N65H5XKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGBT TRENCH 650V 161A TO247-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 161 A.

Datasheet Request a Quote

In Stock: 4,710

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)161 A
Current - Collector Pulsed (Icm)400 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 100A
Power - Max536 W
Switching Energy850µJ (on), 770µJ (off)
Input TypeStandard
Gate Charge210 nC
Td (on/off) @ 25°C30ns/421ns
Test Condition400V, 50A, 8Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-4
Supplier Device PackagePG-TO247-4
