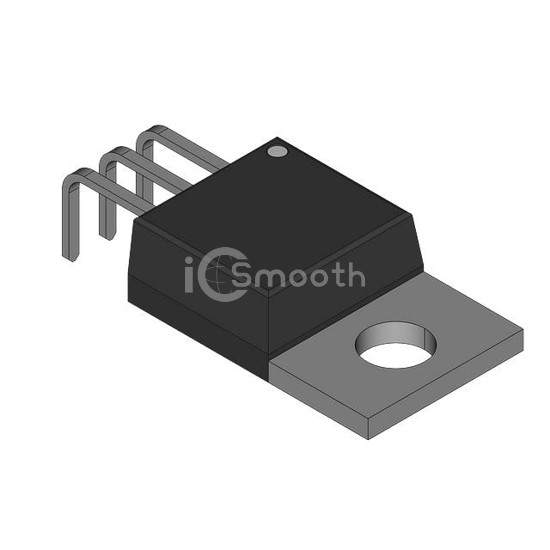

IGP01N120H2XKSA1036 - Infineon Technologies - Transistors - IGBTs - Single
REF: IGP01N120H2XKSA1036 Infineon Technologies
IGP01N120H2XKSA1036

Infineon Technologies

IGP01N120 - DISCRETE IGBT WITHOU

IGP01N120H2XKSA1036 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IGP01N120 - DISCRETE IGBT WITHOU. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3, current - collector (ic) (max) 3.2 A.

Datasheet Request a Quote

In Stock: 8,456

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)3.2 A
Current - Collector Pulsed (Icm)3.5 A
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 1A
Power - Max28 W
Switching Energy80µJ (on), 60µJ (off)
Input TypeStandard
Gate Charge8.6 nC
Td (on/off) @ 25°C13ns/370ns
Test Condition800V, 1A, 241Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackagePG-TO220-3-1
