DF23MR12W1M1B11BPSA1

In Stock: 63

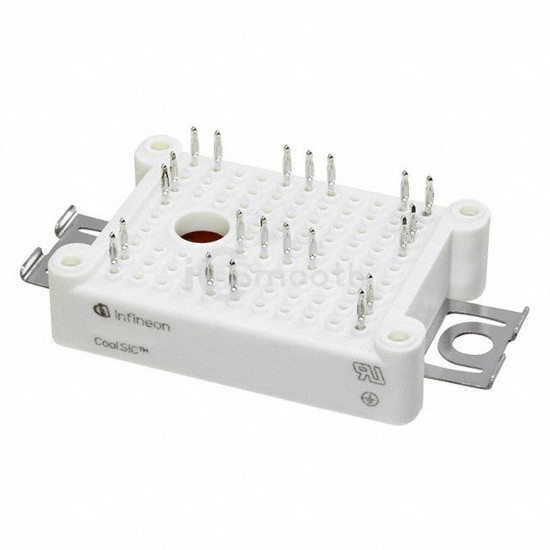

DF23MR12W1M1B11BPSA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Arrays
REF: DF23MR12W1M1B11BPSA1 Infineon Technologies
DF23MR12W1M1B11BPSA1

Infineon Technologies

MOSFET MOD 1200V 25A

DF23MR12W1M1B11BPSA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET MOD 1200V 25A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, power - max 20mW.

Datasheet Request a Quote

In Stock: 63

Specifications

14 parameters
Product StatusLast Time Buy
FET Type2 N-Channel (Dual)
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C25A (Tj)
Rds On (Max) @ Id, Vgs45mOhm @ 25A, 15V (Typ)
Vgs(th) (Max) @ Id5.55V @ 10mA
Gate Charge (Qg) (Max) @ Vgs62nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds1840pF @ 800V
Power - Max20mW
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-EASY1BM-2
