Name: BTS7904SAKSA1
Brand: Infineon Technologies
SKU: BTS7904SAKSA1
Availability: InStock

REF: BTS7904SAKSA1 Infineon Technologies

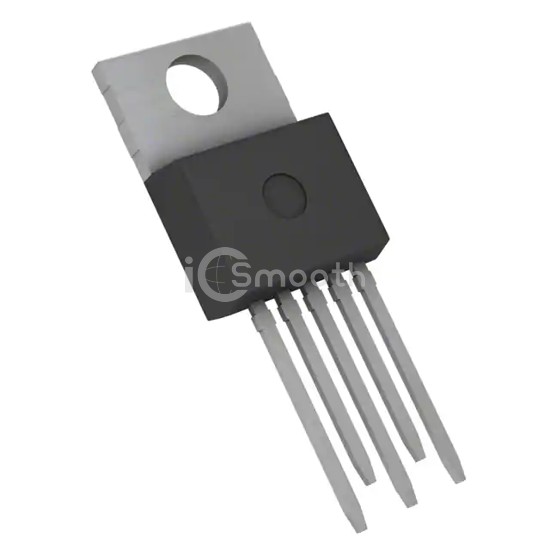

BTS7904SAKSA1

MOSFET N/P-CH 55V/30V 40A TO220

BTS7904SAKSA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET N/P-CH 55V/30V 40A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-5, power - max 69W, 96W.

Datasheet Request a Quote

In Stock: 9,121

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	55V, 30V
Current - Continuous Drain (Id) @ 25°C	40A
Rds On (Max) @ Id, Vgs	12mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 40µA

Gate Charge (Qg) (Max) @ Vgs	123nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	6100pF @ 25V
Power - Max	69W, 96W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-5
Supplier Device Package	PG-TO220-5-13
