BSZ15DC02KDHXTMA1

In Stock: 6,119

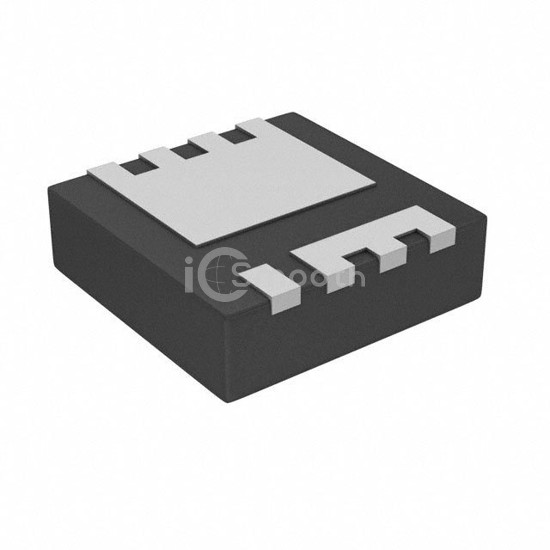

BSZ15DC02KDHXTMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Arrays
REF: BSZ15DC02KDHXTMA1 Infineon Technologies
BSZ15DC02KDHXTMA1

Infineon Technologies

MOSFET N/P-CH 20V 5.1/3.2A TDSON

BSZ15DC02KDHXTMA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET N/P-CH 20V 5.1/3.2A TDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN, power - max 2.5W.

Datasheet Request a Quote

In Stock: 6,119

Specifications

14 parameters
Product StatusActive
FET TypeN and P-Channel Complementary
FET FeatureLogic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C5.1A, 3.2A
Rds On (Max) @ Id, Vgs55mOhm @ 5.1A, 4.5V
Vgs(th) (Max) @ Id1.4V @ 110µA
Gate Charge (Qg) (Max) @ Vgs2.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds419pF @ 10V
Power - Max2.5W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePG-TSDSON-8-FL
