Name: BSZ0909NDXTMA1
Brand: Infineon Technologies
SKU: BSZ0909NDXTMA1
Availability: InStock

REF: BSZ0909NDXTMA1 Infineon Technologies

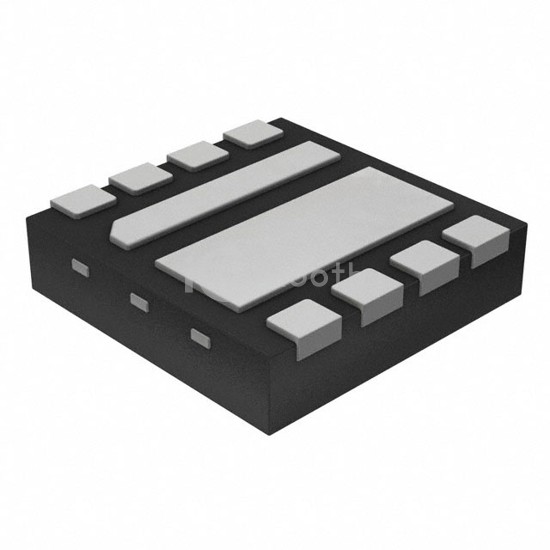

BSZ0909NDXTMA1

MOSFET 2N-CH 30V 20A WISON-8

BSZ0909NDXTMA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 30V 20A WISON-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 17W.

Datasheet Request a Quote

In Stock: 4,947

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Rds On (Max) @ Id, Vgs	18mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	2.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	360pF @ 15V
Power - Max	17W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PG-WISON-8
