BSC076N04NDATMA1

In Stock: 7,998

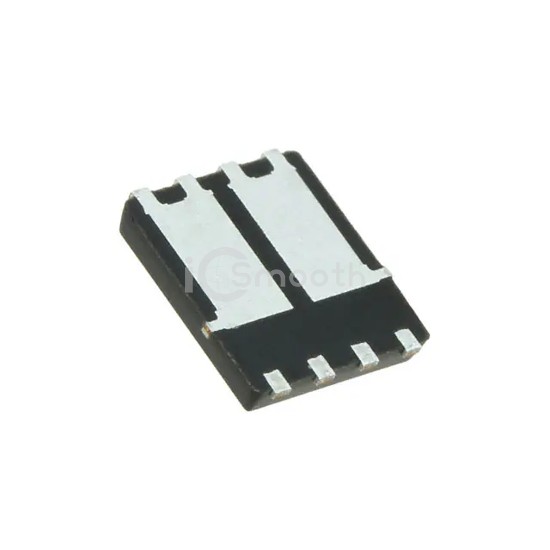

BSC076N04NDATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Arrays
REF: BSC076N04NDATMA1 Infineon Technologies
BSC076N04NDATMA1

Infineon Technologies

TRENCH <= 40V

BSC076N04NDATMA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. TRENCH <= 40V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 2.3W (Ta), 65W (Tc).

Datasheet Request a Quote

In Stock: 7,998

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Rds On (Max) @ Id, Vgs7.6mOhm @ 17A, 10V
Vgs(th) (Max) @ Id4V @ 30µA
Gate Charge (Qg) (Max) @ Vgs38nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2950pF @ 20V
Power - Max2.3W (Ta), 65W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePG-TDSON-8-4
