BSC072N04LDATMA1

In Stock: 9,595

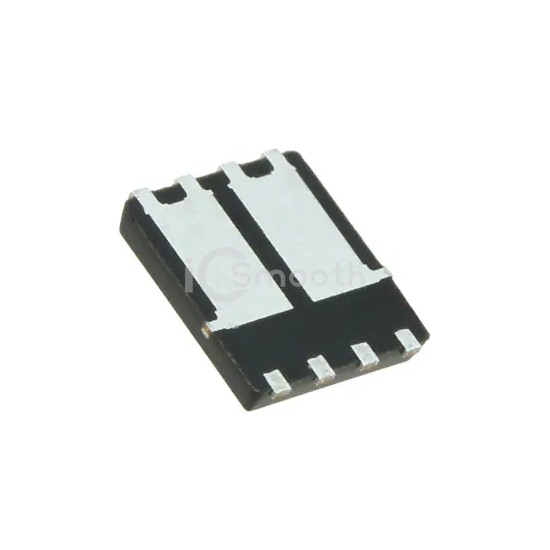

BSC072N04LDATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Arrays
REF: BSC072N04LDATMA1 Infineon Technologies
BSC072N04LDATMA1

Infineon Technologies

TRENCH <= 40V

BSC072N04LDATMA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. TRENCH <= 40V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 65W (Tc).

Datasheet Request a Quote

In Stock: 9,595

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Rds On (Max) @ Id, Vgs7.2mOhm @ 17A, 10V
Vgs(th) (Max) @ Id2.2V @ 30µA
Gate Charge (Qg) (Max) @ Vgs52nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds3990pF @ 20V
Power - Max65W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePG-TDSON-8-4
