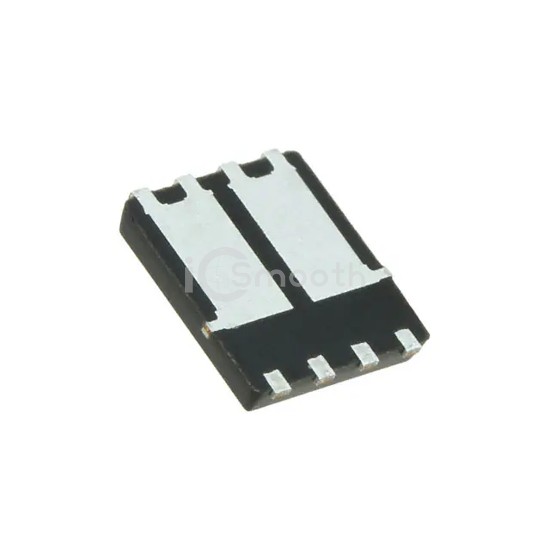

Name: BSC072N03LDGATMA1
Brand: Infineon Technologies
SKU: BSC072N03LDGATMA1
Availability: InStock

REF: BSC072N03LDGATMA1 Infineon Technologies

BSC072N03LDGATMA1

MOSFET 2N-CH 30V 11.5A 8TDSON

BSC072N03LDGATMA1 is a Transistors - FETs, MOSFETs - Arrays manufactured by Infineon Technologies. MOSFET 2N-CH 30V 11.5A 8TDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 57W.

Datasheet Request a Quote

In Stock: 7,623

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	11.5A
Rds On (Max) @ Id, Vgs	7.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	41nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	3500pF @ 15V
Power - Max	57W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PG-TDSON-8-4
