AIKP20N60CTAKSA1

In Stock: 4,669

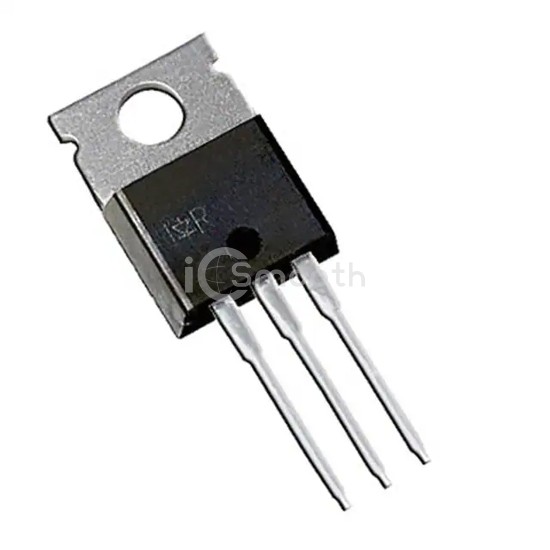

AIKP20N60CTAKSA1 - Infineon Technologies - Transistors - IGBTs - Single
REF: AIKP20N60CTAKSA1 Infineon Technologies
AIKP20N60CTAKSA1

Infineon Technologies

IC DISCRETE 600V TO220-3

AIKP20N60CTAKSA1 is a Transistors - IGBTs - Single manufactured by Infineon Technologies. IC DISCRETE 600V TO220-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-220-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 4,669

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic2.05V @ 15V, 20A
Power - Max156 W
Switching Energy310µJ (on), 460µJ (off)
Input TypeStandard
Gate Charge120 nC
Td (on/off) @ 25°C18ns/199ns
Test Condition400V, 20A, 12Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackagePG-TO220-3-1
