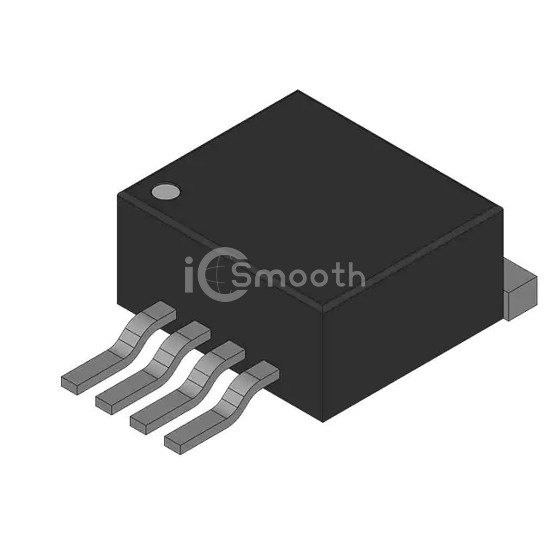

Name: RF3S49092SM9A
Brand: Fairchild Semiconductor
SKU: RF3S49092SM9A
Price: 2.59 USD
Availability: InStock

REF: RF3S49092SM9A Fairchild Semiconductor

RF3S49092SM9A

Fairchild Semiconductor

P-CHANNEL POWER MOSFET

RF3S49092SM9A is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. P-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, power - max 50W (Tc).

Datasheet Request a Quote

In Stock: 2,259

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	20A (Tc), 10A (Tc)
Rds On (Max) @ Id, Vgs	60mOhm @ 20A, 5V, 140mOhm @ 10A, 5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	25nC @ 10V, 24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	750pF @ 10V, 775pF @ 10V
Power - Max	50W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	TO-263-5
