FDZ2554P

In Stock: 89,940

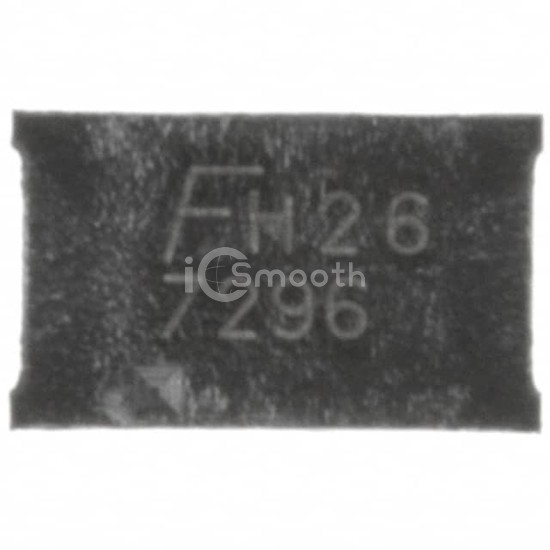

FDZ2554P - Fairchild Semiconductor - Transistors - FETs, MOSFETs - Arrays
REF: FDZ2554P Fairchild Semiconductor
FDZ2554P

Fairchild Semiconductor

P-CHANNEL POWER MOSFET

FDZ2554P is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. P-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 18-WFBGA, power - max 2.1W.

Datasheet Request a Quote

In Stock: 89,940

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C6.5A
Rds On (Max) @ Id, Vgs28mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1900pF @ 10V
Power - Max2.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case18-WFBGA
Supplier Device Package18-BGA (2.5x4)
