FDZ2553NZ

In Stock: 2,990

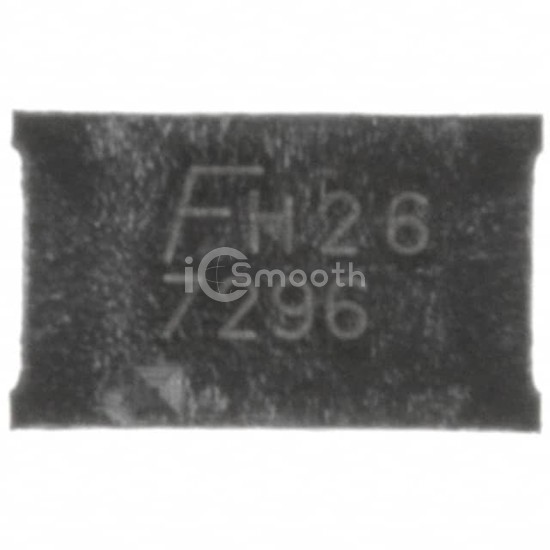

FDZ2553NZ - Fairchild Semiconductor - Transistors - FETs, MOSFETs - Arrays
REF: FDZ2553NZ Fairchild Semiconductor
FDZ2553NZ

Fairchild Semiconductor

N-CHANNEL POWER MOSFET

FDZ2553NZ is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. N-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 18-WFBGA, power - max 2.1W.

Datasheet Request a Quote

In Stock: 2,990

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C9.6A
Rds On (Max) @ Id, Vgs14mOhm @ 9.6A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds1240pF @ 10V
Power - Max2.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case18-WFBGA
Supplier Device Package18-BGA (2.5x4)
