Name: FDY2000PZ
Brand: Fairchild Semiconductor
SKU: FDY2000PZ
Price: 0.16 USD
Availability: InStock

REF: FDY2000PZ Fairchild Semiconductor

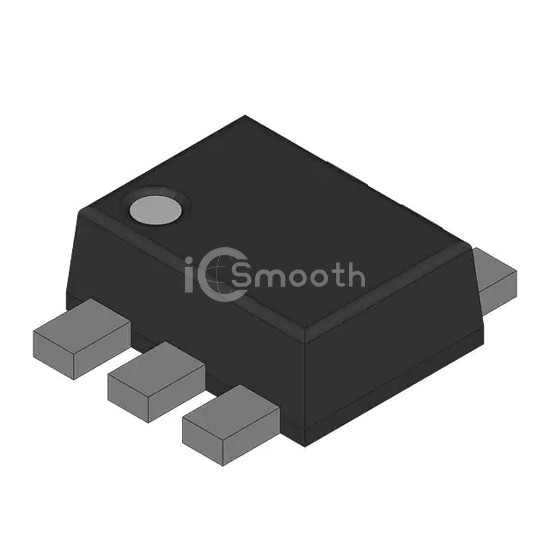

FDY2000PZ

SMALL SIGNAL FIELD-EFFECT TRANSI

FDY2000PZ is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. SMALL SIGNAL FIELD-EFFECT TRANSI. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666, power - max 446mW.

Datasheet Request a Quote

In Stock: 125,062

Specifications

14 parameters

Product Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	350mA
Rds On (Max) @ Id, Vgs	1.2Ohm @ 350mA, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	1.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	100pF @ 10V
Power - Max	446mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563F
