FDWS9420-F085

In Stock: 4,467

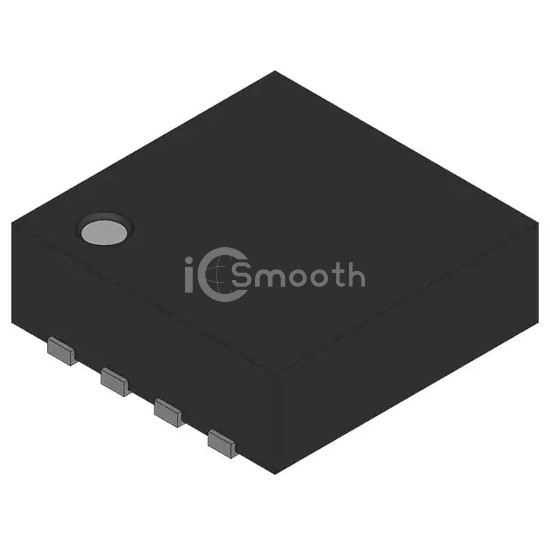

FDWS9420-F085 - Fairchild Semiconductor - Transistors - FETs, MOSFETs - Arrays
REF: FDWS9420-F085 Fairchild Semiconductor
FDWS9420-F085

Fairchild Semiconductor

POWER FIELD-EFFECT TRANSISTOR

FDWS9420-F085 is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. POWER FIELD-EFFECT TRANSISTOR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN, power - max 75W.

Datasheet Request a Quote

In Stock: 4,467

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Rds On (Max) @ Id, Vgs5.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs43nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2100pF @ 20V
Power - Max75W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-PQFN (5x6)
