Name: FDR8702H
Brand: Fairchild Semiconductor
SKU: FDR8702H
Price: 0.70 USD
Availability: InStock

REF: FDR8702H Fairchild Semiconductor

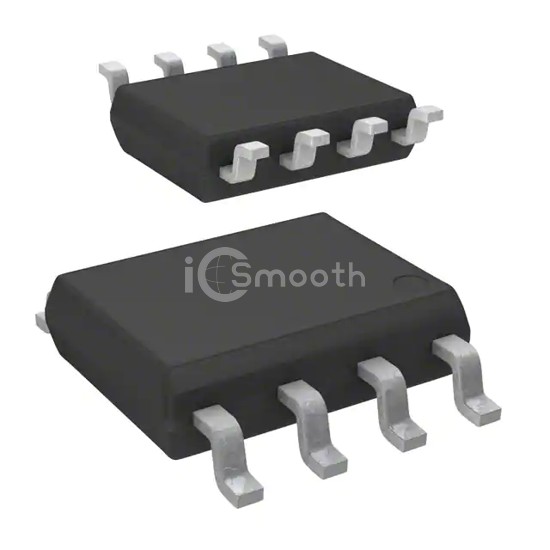

FDR8702H

SMALL SIGNAL P-CHANNEL MOSFET

FDR8702H is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. SMALL SIGNAL P-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TSOP (0.130", 3.30mm Width), power - max 800mW.

Datasheet Request a Quote

In Stock: 254,870

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.6A, 2.6A
Rds On (Max) @ Id, Vgs	38mOhm @ 3.6A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	10nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	650pF @ 10V
Power - Max	800mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-TSOP (0.130", 3.30mm Width)
Supplier Device Package	SuperSOT™-8
