FDR8308P

In Stock: 18,650

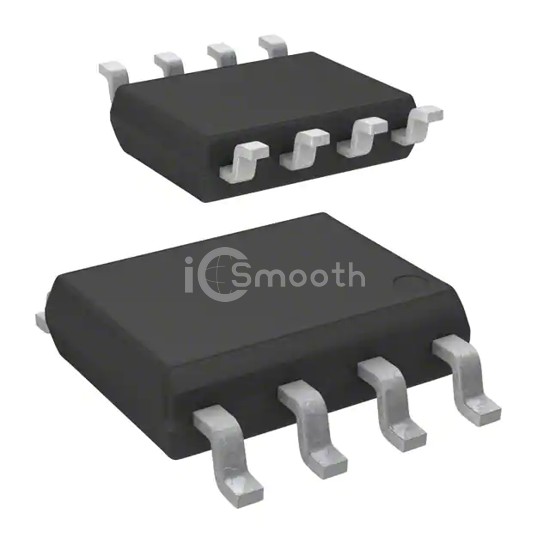

FDR8308P - Fairchild Semiconductor - Transistors - FETs, MOSFETs - Arrays
REF: FDR8308P Fairchild Semiconductor
FDR8308P

Fairchild Semiconductor

SMALL SIGNAL P-CHANNEL MOSFET

FDR8308P is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. SMALL SIGNAL P-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TSOP (0.130", 3.30mm Width), power - max 800mW.

Datasheet Request a Quote

In Stock: 18,650

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C3.2A
Rds On (Max) @ Id, Vgs50mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs19nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1240pF @ 10V
Power - Max800mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-TSOP (0.130", 3.30mm Width)
Supplier Device PackageSuperSOT™-8
