Name: FDPC1012S
Brand: Fairchild Semiconductor
SKU: FDPC1012S
Price: 0.40 USD
Availability: InStock

REF: FDPC1012S Fairchild Semiconductor

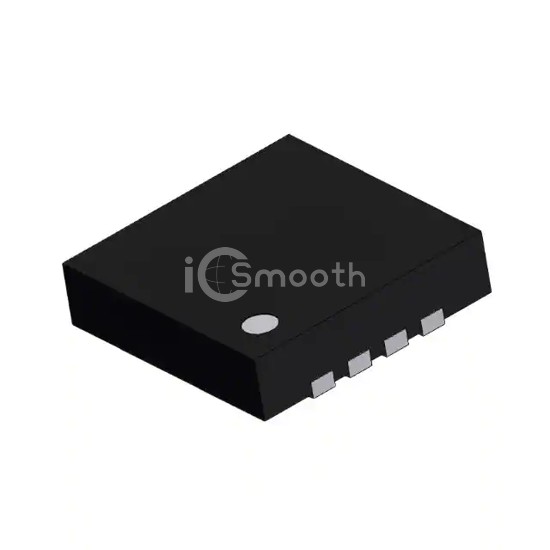

FDPC1012S

POWER FIELD-EFFECT TRANSISTOR

FDPC1012S is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. POWER FIELD-EFFECT TRANSISTOR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 800mW (Ta), 900mW (Ta).

Datasheet Request a Quote

In Stock: 7,373

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Standard
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	13A (Ta), 35A (Tc), 26A (Ta), 88A (Tc)
Rds On (Max) @ Id, Vgs	7mOhm @ 12A, 4.5V, 2.2mOhm @ 23A, 4.5V
Vgs(th) (Max) @ Id	2.2V @ 250µA, 2.2V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	8nC @ 4.5V, 25nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1075pF @ 13V, 3456pF @ 13V
Power - Max	800mW (Ta), 900mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	Powerclip-33
