Name: FDPC1002S
Brand: Fairchild Semiconductor
SKU: FDPC1002S
Price: 0.36 USD
Availability: InStock

REF: FDPC1002S Fairchild Semiconductor

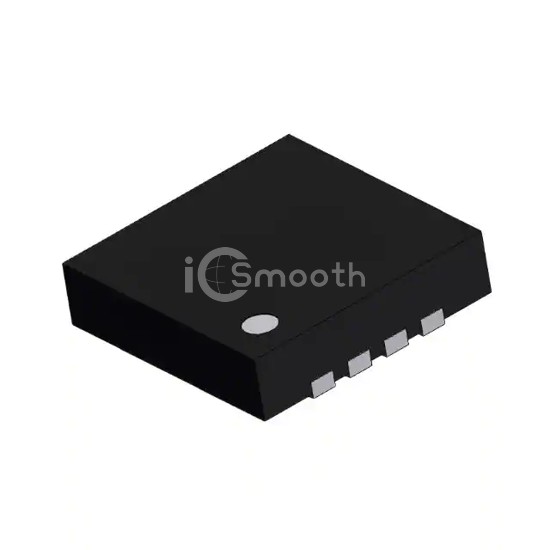

FDPC1002S

POWER FIELD-EFFECT TRANSISTOR, 1

FDPC1002S is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. POWER FIELD-EFFECT TRANSISTOR, 1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case 8-PowerWDFN, power - max 1.6W (Ta), 2W (Ta).

Datasheet Request a Quote

In Stock: 10,941

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	13A (Ta), 20A (Tc), 27A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs	6mOhm @ 13A, 10V, 1.8mOhm @ 27A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA, 2.2V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	19nC @ 10V, 64nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1240pF @13V, 4335pF @ 13V
Power - Max	1.6W (Ta), 2W (Ta)
Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	Powerclip-33
