FDMJ1023PZ

In Stock: 3,584

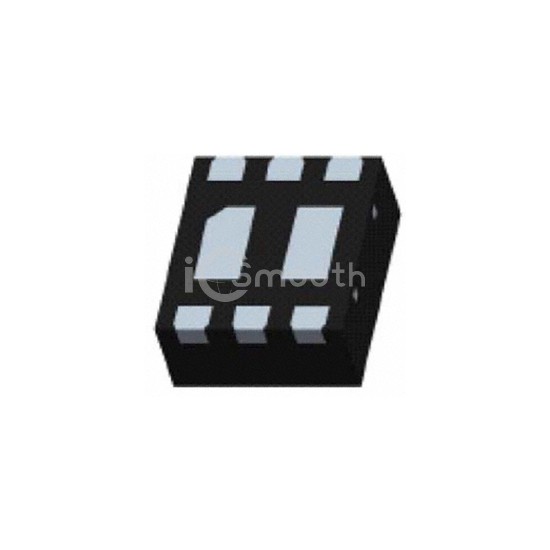

FDMJ1023PZ - Fairchild Semiconductor - Transistors - FETs, MOSFETs - Arrays
REF: FDMJ1023PZ Fairchild Semiconductor
FDMJ1023PZ

Fairchild Semiconductor

SMALL SIGNAL P-CHANNEL MOSFET

FDMJ1023PZ is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. SMALL SIGNAL P-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WFDFN Exposed Pad, power - max 700mW.

Datasheet Request a Quote

In Stock: 3,584

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C2.9A
Rds On (Max) @ Id, Vgs112mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds400pF @ 10V
Power - Max700mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WFDFN Exposed Pad
Supplier Device PackageSC-75, MicroFET
