FDM3300NZ

In Stock: 86,732

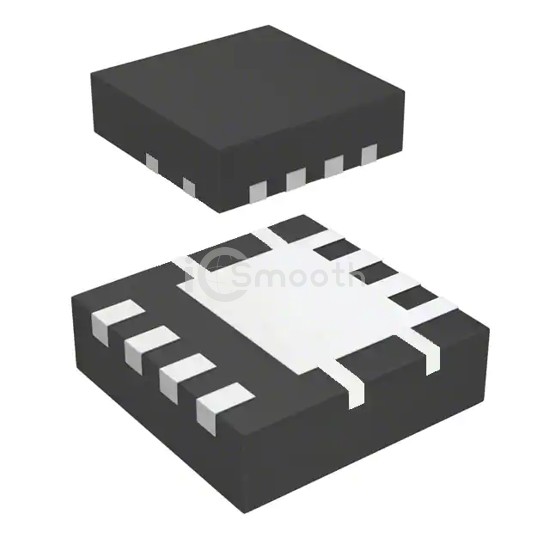

FDM3300NZ - Fairchild Semiconductor - Transistors - FETs, MOSFETs - Arrays
REF: FDM3300NZ Fairchild Semiconductor
FDM3300NZ

Fairchild Semiconductor

N-CHANNEL POWER MOSFET

FDM3300NZ is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. N-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 900mW.

Datasheet Request a Quote

In Stock: 86,732

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C10A
Rds On (Max) @ Id, Vgs23mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1610pF @ 10V
Power - Max900mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePower33
