FDM2509NZ

In Stock: 4,849
FDM2509NZ - Fairchild Semiconductor - Transistors - FETs, MOSFETs - Arrays
REF: FDM2509NZ Fairchild Semiconductor
FDM2509NZ

Fairchild Semiconductor

SMALL SIGNAL N-CHANNEL MOSFET

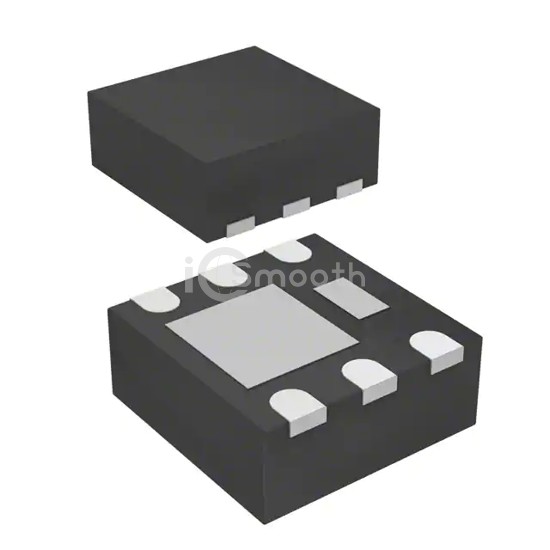

FDM2509NZ is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. SMALL SIGNAL N-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad, power - max 800mW.

Datasheet Request a Quote

In Stock: 4,849

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C8.7A
Rds On (Max) @ Id, Vgs18mOhm @ 8.7A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1200pF @ 10V
Power - Max800mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-UDFN Exposed Pad
Supplier Device PackageMicroFET 2x2 Thin
