FDG6302P

In Stock: 419,384

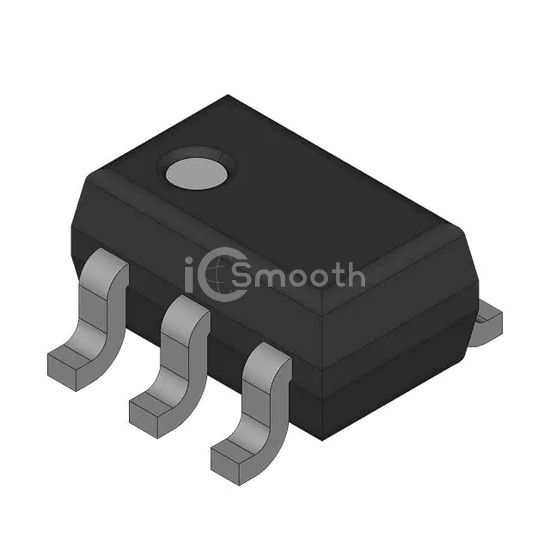

FDG6302P - Fairchild Semiconductor - Transistors - FETs, MOSFETs - Arrays
REF: FDG6302P Fairchild Semiconductor
FDG6302P

Fairchild Semiconductor

SMALL SIGNAL P-CHANNEL MOSFET

FDG6302P is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. SMALL SIGNAL P-CHANNEL MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363, power - max 300mW.

Datasheet Request a Quote

In Stock: 419,384

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C140mA
Rds On (Max) @ Id, Vgs10Ohm @ 140mA, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.31nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds12pF @ 10V
Power - Max300mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-88 (SC-70-6)
