Name: FDD8424H-F085A
Brand: Fairchild Semiconductor
SKU: FDD8424H-F085A
Availability: InStock

REF: FDD8424H-F085A Fairchild Semiconductor

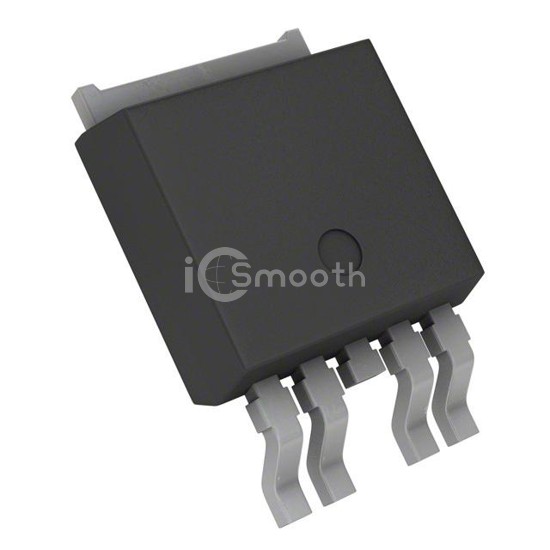

FDD8424H-F085A

P-CHANNEL POWER MOSFET

FDD8424H-F085A is a Transistors - FETs, MOSFETs - Arrays manufactured by Fairchild Semiconductor. P-CHANNEL POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD, power - max 1.3W.

Datasheet Request a Quote

In Stock: 4,246

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	9A, 6.5A
Rds On (Max) @ Id, Vgs	24mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1000pF @ 20V
Power - Max	1.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package	TO-252-4
