Name: EPC2101
Brand: EPC
SKU: EPC2101
Price: 9.16 USD
Availability: InStock

REF: EPC2101 EPC

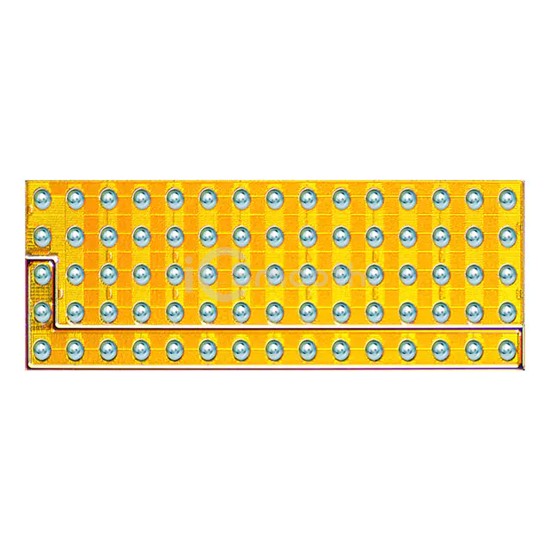

EPC2101

GAN TRANS ASYMMETRICAL HALF BRID

EPC2101 is a Transistors - FETs, MOSFETs - Arrays manufactured by EPC. GAN TRANS ASYMMETRICAL HALF BRID. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.

Datasheet Request a Quote

In Stock: 193

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	9.5A, 38A
Rds On (Max) @ Id, Vgs	11.5mOhm @ 20A, 5V, 2.7mOhm @ 20A, 5V
Vgs(th) (Max) @ Id	2.5V @ 3mA, 2.5V @ 12mA

Gate Charge (Qg) (Max) @ Vgs	2.7nC @ 5V, 12nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	300pF @ 30V, 1200pF @ 30V
Power - Max	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	Die
Supplier Device Package	Die
