Name: EPC2100
Brand: EPC
SKU: EPC2100
Price: 6.94 USD
Availability: InStock

REF: EPC2100 EPC

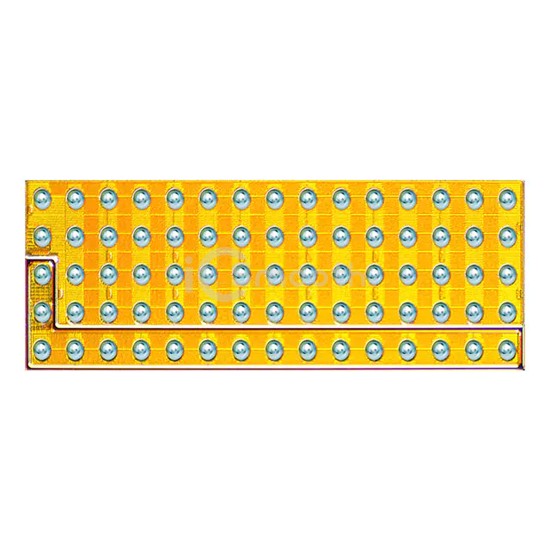

EPC2100

GAN TRANS ASYMMETRICAL HALF BRID

EPC2100 is a Transistors - FETs, MOSFETs - Arrays manufactured by EPC. GAN TRANS ASYMMETRICAL HALF BRID. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.

Datasheet Request a Quote

In Stock: 409

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	10A (Ta), 40A (Ta)
Rds On (Max) @ Id, Vgs	8.2mOhm @ 25A, 5V, 2.1mOhm @ 25A, 5V
Vgs(th) (Max) @ Id	2.5V @ 4mA, 2.5V @ 16mA

Gate Charge (Qg) (Max) @ Vgs	4.9nC @ 15V, 19nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds	475pF @ 15V, 1960pF @ 15V
Power - Max	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	Die
Supplier Device Package	Die
