Name: MMFTN620KDW-AQ
Brand: Diotec Semiconductor
SKU: MMFTN620KDW-AQ
Price: 0.73 USD
Availability: InStock

REF: MMFTN620KDW-AQ Diotec Semiconductor

MMFTN620KDW-AQ

Diotec Semiconductor

MOSFET, 60V, 0.35A, N, 0.2W

MMFTN620KDW-AQ is a Transistors - FETs, MOSFETs - Arrays manufactured by Diotec Semiconductor. MOSFET, 60V, 0.35A, N, 0.2W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VSSOP, SC-88, SOT-363, power - max 320mW (Ta).

Datasheet Request a Quote

In Stock: 8,876

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	350mA (Ta)
Rds On (Max) @ Id, Vgs	2Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	320pF @ 30V
Power - Max	320mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

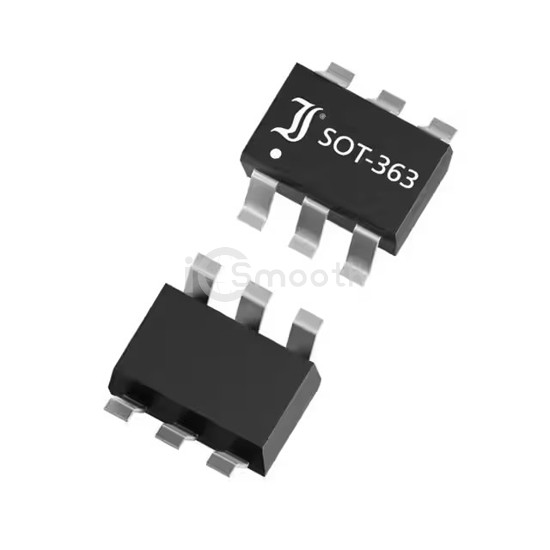

Package / Case	6-VSSOP, SC-88, SOT-363
Supplier Device Package	SOT-363
