M5010012F

In Stock: 10

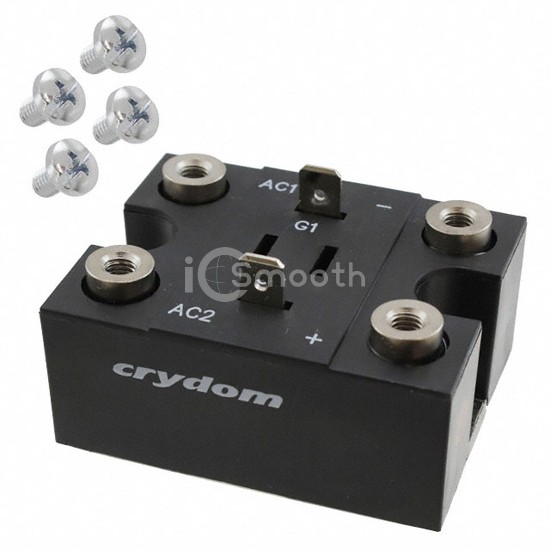

M5010012F - Sensata-Crydom - Thyristors - SCRs - Modules
REF: M5010012F Sensata-Crydom
M5010012F

Sensata-Crydom

MODULE POWER 100A 600V SCR CC

M5010012F is a Thyristors - SCRs - Modules manufactured by Sensata-Crydom. MODULE POWER 100A 600V SCR CC. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 10

Tiered Pricing USD
1+ $187.6700 —
10+ $178.7310 -5%
50+ $170.6102 -9% BEST

Specifications

13 parameters
Product StatusActive
StructureBridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes2 SCRs, 2 Diodes
Voltage - Off State600 V
Current - On State (It (AV)) (Max)-
Current - On State (It (RMS)) (Max)-
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)1500A @ 60Hz
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
