MCD94-22IO1B

In Stock: 33

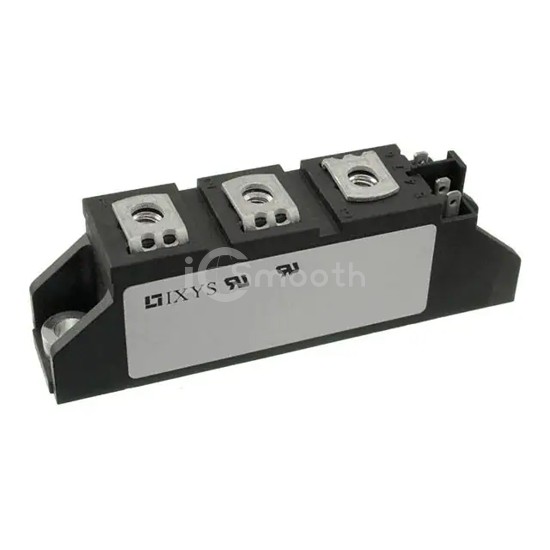

MCD94-22IO1B - IXYS - Thyristors - SCRs - Modules
REF: MCD94-22IO1B IXYS
MCD94-22IO1B

IXYS

MOD THYRISTOR/DIO 2200V TO-240AA

MCD94-22IO1B is a Thyristors - SCRs - Modules manufactured by IXYS. MOD THYRISTOR/DIO 2200V TO-240AA. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-240AA.

Datasheet Request a Quote

In Stock: 33

Tiered Pricing USD
1+ $57.2000 —
36+ $42.0567 -26% BEST

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State2.2 kV
Current - On State (It (AV)) (Max)104 A
Current - On State (It (RMS)) (Max)180 A
Voltage - Gate Trigger (Vgt) (Max)1.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)1700A, 1800A
Current - Hold (Ih) (Max)150 mA
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseTO-240AA
