NTE5705

In Stock: 33

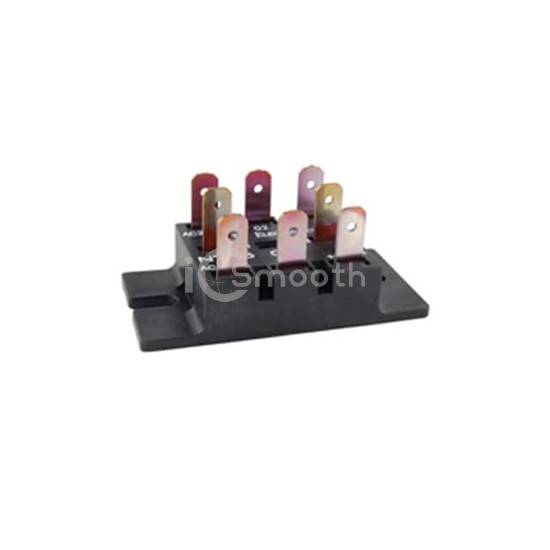

NTE5705 - NTE Electronics, Inc - Thyristors - SCRs - Modules
REF: NTE5705 NTE Electronics, Inc
NTE5705

NTE Electronics, Inc

INDUSTRIAL POWER MODULE

NTE5705 is a Thyristors - SCRs - Modules manufactured by NTE Electronics, Inc. INDUSTRIAL POWER MODULE. Key specifications: operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 33

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.2 kV
Current - On State (It (AV)) (Max)12.5 A
Current - On State (It (RMS)) (Max)15.5 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)357A, 375A
Current - Hold (Ih) (Max)100 mA
Operating Temperature-40°C ~ 125°C (TJ)
Mounting Type-
Package / CaseModule
