L514F

In Stock: 5,208

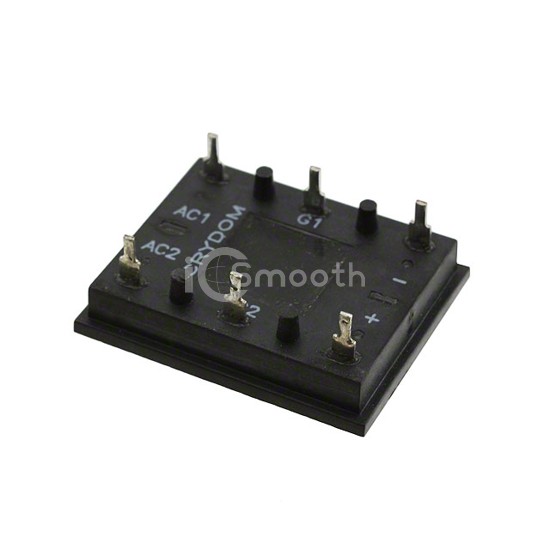

L514F - Sensata-Crydom - Thyristors - SCRs - Modules
REF: L514F Sensata-Crydom
L514F

Sensata-Crydom

MODULE SCR/DIODE 25A 480VAC PCB

L514F is a Thyristors - SCRs - Modules manufactured by Sensata-Crydom. MODULE SCR/DIODE 25A 480VAC PCB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 5,208

Tiered Pricing USD
1+ $115.3000 —
10+ $109.8100 -5%
50+ $104.8202 -9% BEST

Specifications

13 parameters
Product StatusNot For New Designs
StructureBridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes2 SCRs, 2 Diodes
Voltage - Off State1.2 kV
Current - On State (It (AV)) (Max)-
Current - On State (It (RMS)) (Max)-
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)300A @ 60Hz
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeThrough Hole
Package / CaseModule
