M252513F

In Stock: 8

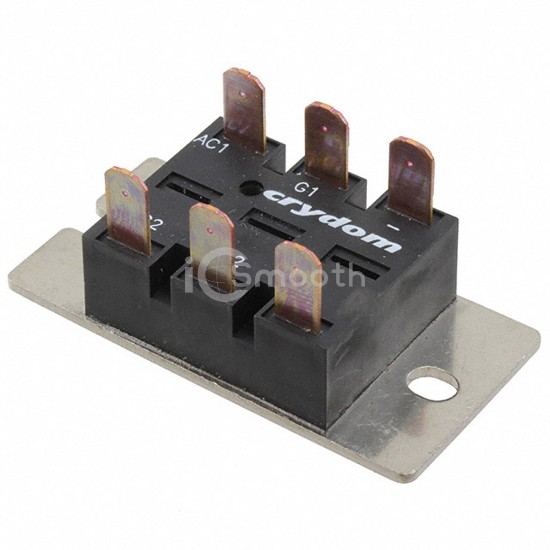

M252513F - Sensata-Crydom - Thyristors - SCRs - Modules
REF: M252513F Sensata-Crydom
M252513F

Sensata-Crydom

MODULE POWER 25A 320VAC SCR CC

M252513F is a Thyristors - SCRs - Modules manufactured by Sensata-Crydom. MODULE POWER 25A 320VAC SCR CC. Key specifications: mounting type Chassis Mount, package / case Module.

Datasheet Request a Quote

In Stock: 8

Tiered Pricing USD
1+ $79.8800 —
10+ $76.0800 -5%
50+ $72.6204 -9%
100+ $70.4900 -12% BEST

Specifications

13 parameters
Product StatusNot For New Designs
StructureBridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes2 SCRs, 2 Diodes
Voltage - Off State800 V
Current - On State (It (AV)) (Max)-
Current - On State (It (RMS)) (Max)-
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)300A @ 60Hz
Current - Hold (Ih) (Max)75 mA
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseModule
