L313F

In Stock: 8,550

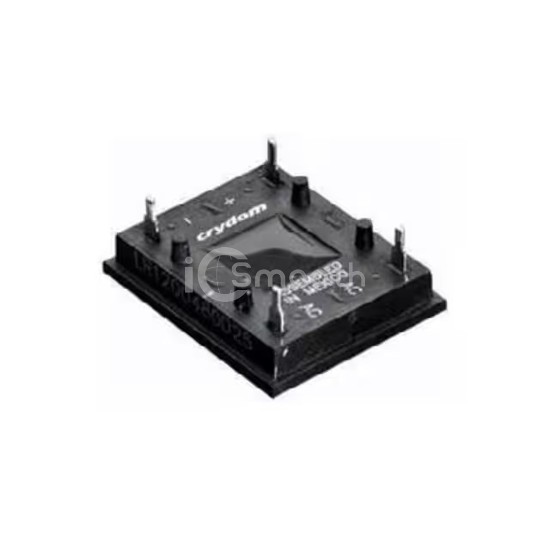

L313F - Sensata-Crydom - Thyristors - SCRs - Modules
REF: L313F Sensata-Crydom
L313F

Sensata-Crydom

L SERIES POWER MODULE

L313F is a Thyristors - SCRs - Modules manufactured by Sensata-Crydom. L SERIES POWER MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 8,550

Specifications

13 parameters
Product StatusNot For New Designs
StructureBridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes2 SCRs, 2 Diodes
Voltage - Off State800 V
Current - On State (It (AV)) (Max)-
Current - On State (It (RMS)) (Max)-
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)2250A @ 60Hz
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
