B513F-2T

In Stock: 3,569

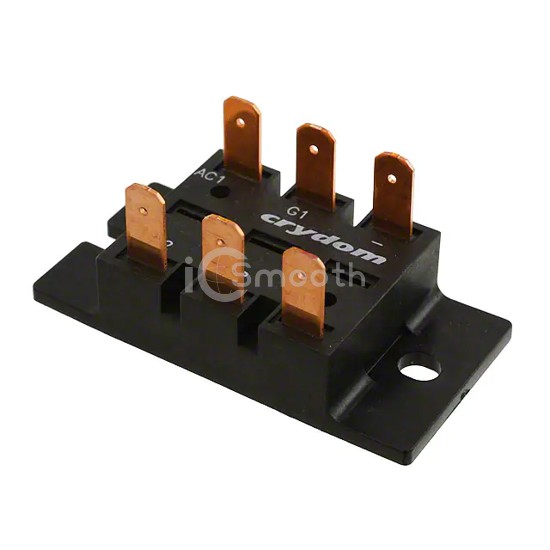

B513F-2T - Sensata-Crydom - Thyristors - SCRs - Modules
REF: B513F-2T Sensata-Crydom
B513F-2T

Sensata-Crydom

MOD DIODE SCR 25A 280VAC .250"QC

B513F-2T is a Thyristors - SCRs - Modules manufactured by Sensata-Crydom. MOD DIODE SCR 25A 280VAC .250"QC. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 3,569

Tiered Pricing USD
1+ $60.2000 —
10+ $57.3300 -5%
50+ $54.7302 -9%
100+ $53.1203 -12% BEST

Specifications

13 parameters
Product StatusActive
StructureBridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes2 SCRs, 2 Diodes
Voltage - Off State800 V
Current - On State (It (AV)) (Max)-
Current - On State (It (RMS)) (Max)-
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)250A @ 60Hz
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
