Name: CMS25NN03V8-HF
Brand: Comchip Technology
SKU: CMS25NN03V8-HF
Availability: InStock

REF: CMS25NN03V8-HF Comchip Technology

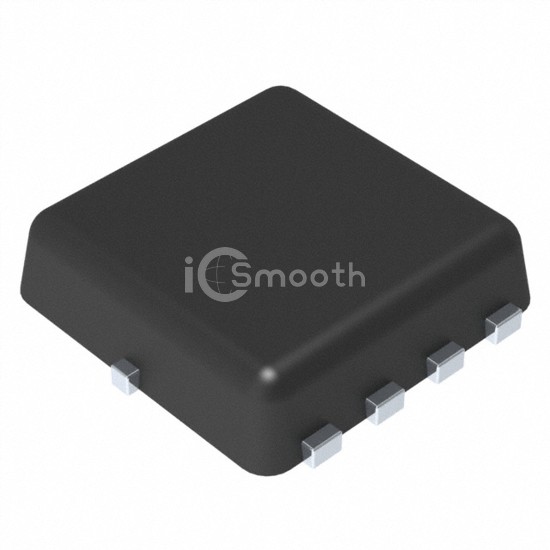

CMS25NN03V8-HF

MOSFET N-CH 30VDS 20VGS 25A PDFN

CMS25NN03V8-HF is a Transistors - FETs, MOSFETs - Arrays manufactured by Comchip Technology. MOSFET N-CH 30VDS 20VGS 25A PDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case 8-PowerWDFN, power - max 1.7W (Ta), 20.8W (Tc).

Datasheet Request a Quote

In Stock: 8,205

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	-
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	25A
Rds On (Max) @ Id, Vgs	20mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	7.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	572pF @ 15V
Power - Max	1.7W (Ta), 20.8W (Tc)
Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PDFN (SPR-PAK ) (3.3x3.3)
